Rice Lake CW-90XB Ready-n-Weigh IP69K Bench Scale System

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90XB light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Capacity:
• 2.5 kg x 0.5 g / 5 lb  x 0.001 lb
• 5 kg x 1 g / 10 lb x 0.002 lb
• 10 kg x 2 g / 25 lb x 0.005 lb
• 25 kg x 5 g / 50 lb x 0.01 lb
• 50 kg x 10 g / 100 lb x 0.02 lb

Platform Size:
• CW-90XB 1010 models: 254 mm x 254 mm / 10" x 10"
• CW-90XB 1212 models: 305 mm x 305 mm / 12" x 12"

Features:
• Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC

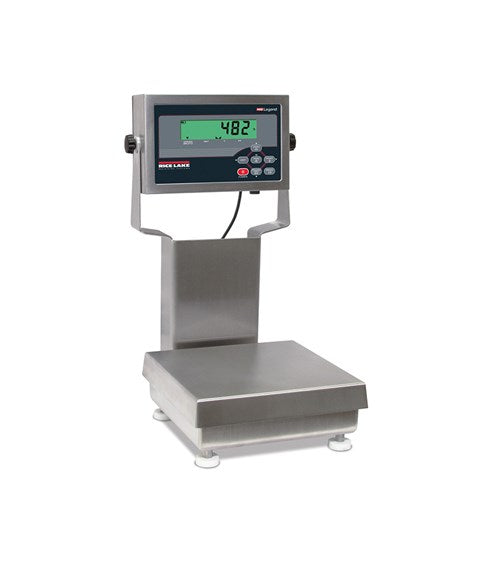

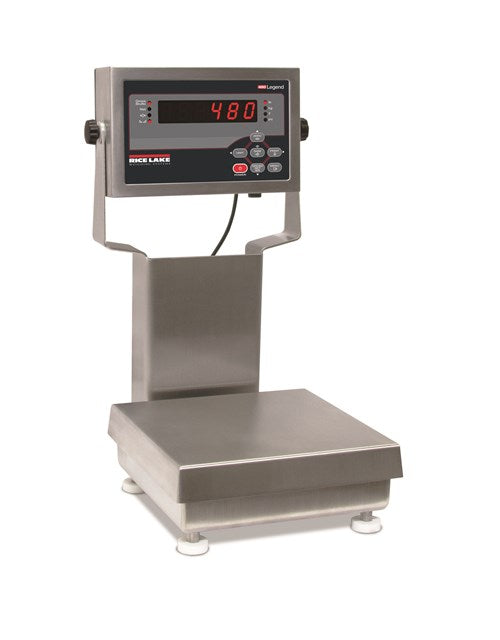

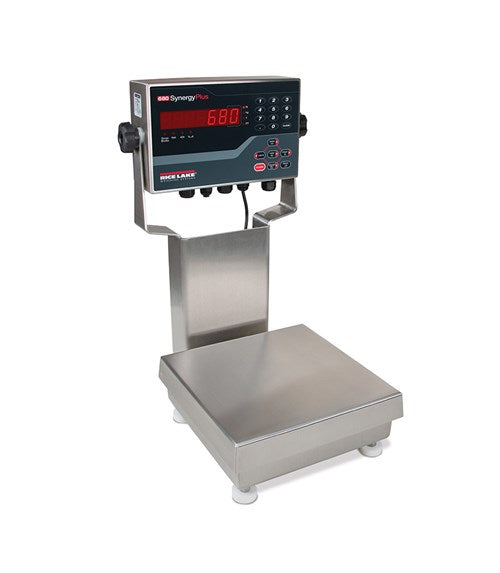

• Indicator display type for a variety of environments.  LED display (480/480Plus, 680 Synergy Series); LCD backlit display (482/482 Plus)
• Battery backed time and date
• Standard RS-232 serial ports for connecting to a variety of peripherals
• Ethernet TCP/IP comes standard with the 680 Synergy Series but is sold as an option for the 480/480Plus and 482/482 Plus

Optional: (request a quote)
• FOR 482/482PLUS models: Internal Battery Package

Warranty:
• 2-year limited warranty

Approvals:
AM-5892, AM-6121C (indicators) / AM-5082 (base)
 12-123A2, 19-021A3 (indicators)

Downloads:
480/480Plus:     482/482Plus:    680:
