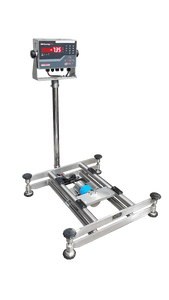

Rice Lake Synergy 680 / Anyload TNS Full Stainless Washdown Scale

Rice Lake’s configurable 680 Synergy Series indicator combines powerful features found in advanced instrumentation with easy-to-use functions of more basic indicators. Designed with the customer in mind, the 680 is suitable for real-world, industrial environments. Tackle general purpose weighing, straightforward automation and a wide range of applications with the 680 Synergy Series.

Model	Capacity	Precision	Dimensions
TNS3030	15, 30 kg	5, 10 g	30 x 30 cm / 11.8" x 11.8"
TNS4050	60, 150 kg	20, 50 g	40 x 50 cm / 15.7" x 19.7"
TNS4646	60, 150 kg	20, 50 g	46 x 46 cm / 18.1" x 18.1"
TNS4660	60, 150, 300 kg	20, 50, 100 g	46 x 60 cm / 18.1" x 23.6"
TNS6060	150, 300 kg	50, 100 g	60 x 60 cm / 23.6" x 23.6"

Anyload TNS series platform:
• Heavy gauge stainless steel (SS304) construction
• NTEP/OIML approved aluminum load cell with stainless steel shroud
• Measurement Canada and NTEP certified, capacities from 15kg to 300kg
• Breaking Overload: 150% of full scale

Rice Lake Synergy 680 Indicator:
• Bright seven-digit, seven-segment LED display
• Battery backed time and date
• Full numeric keypad
• Three serial ports: two RS-232, one full duplex RS-485
• Numeric keyed entry allowed for tare and setpoint entry
• Formattable tickets
• Ethernet TCP/IP
• USB device
• Stainless steel IP69K enclosure
• Four onboard configurable digital I/O points, TTL logic

Approvals:
 AM-6121C (indicator) / AM-5967 (base)
 19-021A5 (indicator) / 14-095 (base)

Downloads:
Indicator:    Base:
