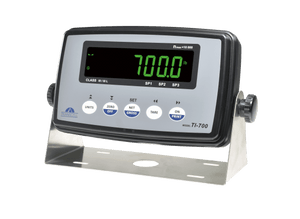

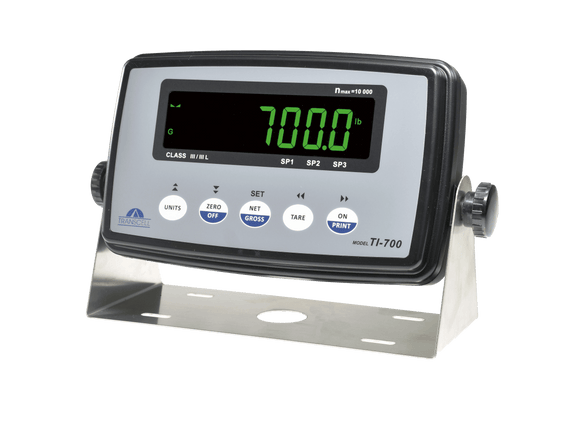

Transcell TI-700 Weighing Indicator

The TI-700 is an NTEP and Canadian certified digital indicator. The front half of the enclosure is made of Polycarbonate, and the rear half of the enclosure is made of durable and waterproof ABS. It is equipped with a large multi-color reverse LCD display and capacitive touch keypad. It is capable of driving 8-350Ω resistive strain gage load cells. This simple device can handle a multitude of functions. Sealed ABS enclosure is rated for IP67. Standard communications include one RS-232C port.

Features:
• Display: Large, easy to read reverse LCD
• Backlight: Choose from 6 colours
• Units: Pounds (lb), Kilograms (kg)
• Annunciators: Net, Tare, Center of Zero, lb, kg, pcs, Stable
• Key Functions: Gross, Units, Zero/Off, Net/Gross, Tare, On/Print
• Applications: Piece Counting, Remote Display, Animal/Peak Hold, Checkweigher, Accumulation
• Enclosure: Polycarbonate front with Durable ABS NEMA 4x back/ IP67
• Stand: Heavy Duty Swivel Mounting Stand
• Internal Power Supply
• Serial Port: Full Duplex RS-232
• Programmable Print Format
• Gross/Net/Tare: Print Ticket Mode with 6 digit ID number
• Time / Date
• Operating Temperature --20℃ to 40℃
• Power (Standard) 100-240 VAC

Warranty:
• 1-year limited warranty

Approvals:
 AM-6038C
 16-086A1

Downloads:
Specifications:    User Manual:
